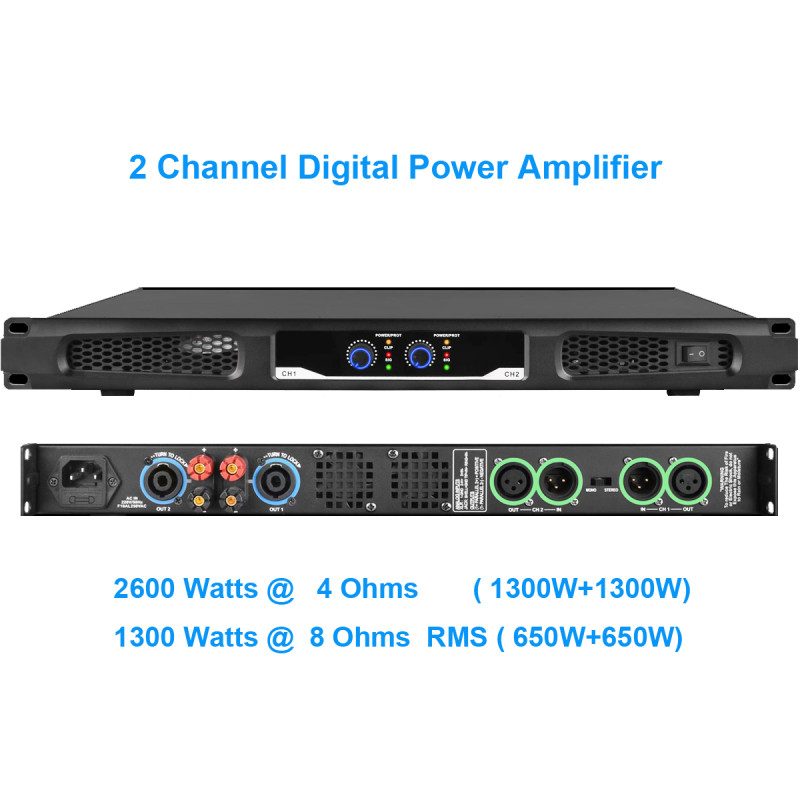

MiCWL Professional 2600W CA Series Digital Power Amplifier

2600 watts PEAK Output AMP 2 Channel 2x1300W

MSRP: $2499.00

Brand New - Original Packaging

Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.

MICWL CA Series CA-650W Amplifer is a Professional 2 Channel Digital Power Amplifier that was developed using the expertise of professional

sound engineers,

working musicians and professional DJ's. For its price range, it's rare to find a professional power amplifier that compares with

the CA-650W awesome performance,

flexibility and crystal clear sound quality.

◆ Ultra -large switching power amplifier

◆ The protection functions such as automatic limit output, short -circuit, overload, over -temperature, boot delay and other protection functions

◆ The power amplifier is equipped with a delay startup system, which is damaged by protecting the speaker from impact

◆ The rear panel is equipped with dual channels,

◆ Balance input interface

◆ Speakon output connector

◆ 483mm standard rack structure

◆ The power amplifier part of the switching power supply part has a separate cooling system

◆ The heat dissipation fan is controlled by advanced stepless transmission circuit

◆ 1U design, light body, easy to carry and install

2x Channel

2600 Watts @ 4 Ohms ( 2 x 1300W )

1300 Watts @ 8 Ohms ( 2x 650W )

Output/output (8Ω, 1kHz): 2x650W

Output/OUTPUT (4Ω, 1kHz): 2x1300W

Frequency response/FREQUENCY Response: 20Hz ~ 20KHz ± 3dB

Total distortion/Total Distortion:

1%(8Ω, 350W/time)

Enter sensitivity/Input Sensitivity:+4DB * (1.23V)

Input impedance/input Impedance: 10kΩ (electronic balance/BALANCED)

Signal ratio/S/N Ratio: ≥80dB

Connecting terminal Connector:

Input (CH1-2): XLR input connector; output (CH1-2): Speakon output terminal; power: AC power supply input (CH1-2): xlr input connector; output (ch1-2): Speakon Output; Power: AC Power Supply.

Display light Indicator Lights:

Power display light x1 (green); input display light x 2 (yellow); peak display light x 2 (red); protecting circuit action display light x 1 (red) Power Inicator x 1 (Green), input Indicator X 2 (YELLOW ), Peak Indicator X 2 (Red); Feedback Protect Indicator X 1 (Red)

Power voltage/Power Supply Voltage:

AC110 ~ 120V, 50/60Hz AC220 ~ 240V, 50/60Hz (using internal jump switch/via inside jumping switch)

1/8 rated movement 1/8 Rated Activity Consumed Power: 50W, 80W, 110W

The temperature range of using the environment is worn tempeature range: 0 ~ 50 ℃

The humidity range of the environment is working with Humidity Range:

Below 90% RH/Under 90% RH

How much Speaker can this amplifier drive:

650W each Channel:

It Can Drive 650W or less 650W @ 8 Ohm Sound Speaker each Channel ( 1300W @ 4 Ohm each channel)

- If your speaker is no more than 650 watts, this amplifier is enough to drive.

( 2 Channel can Drive 2 Unit 650W Speakers )


Also have1400W Super power each Channel Digital Power Amplifier for Choice (please check our company store or contact us)
