MiCWL Audio Inc.

Authentic High Quality Professional True Diversity Handheld

 Digital Wireless Microphone System

with KSM9 Handheld

Large Range of wireless transmission

 with KSM9 Condenser Microphones Capsule

MSRP: $1877.00

Brand New - Original Packaging

Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.

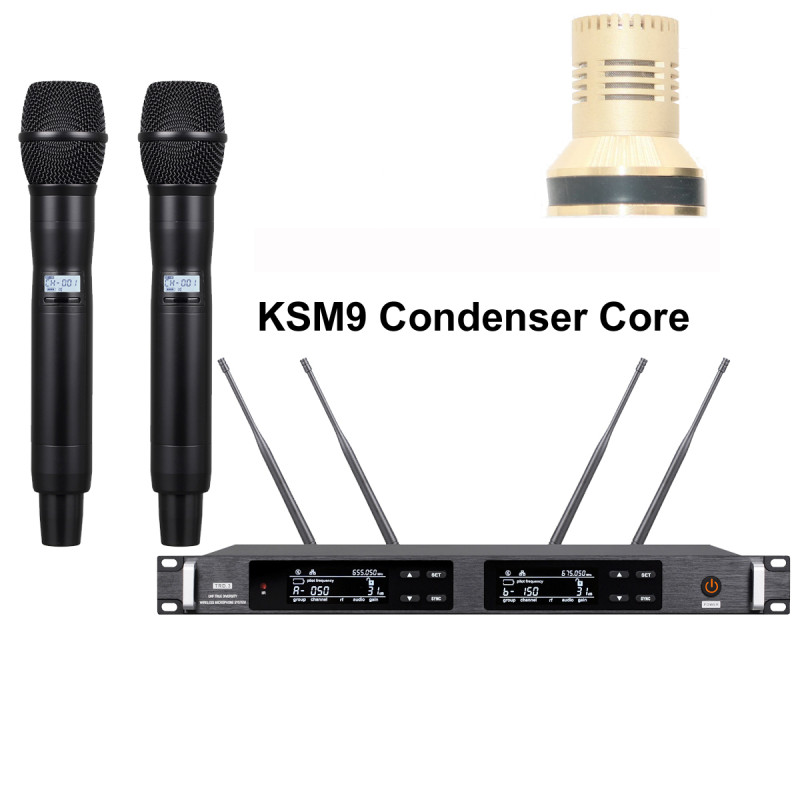

1 x Dual Channel Digital Host

2 x KSM9 Metal Handheld microphone

1 x Audio transmission line

1 x power adapter

4 x telescopic antennas

1 x Operating instructions

Features:

1. True diversity receiver, dual-channel independent selection system. It can minimize the occurrence of frequency interruption.

2. The dual-channel independent AFS frequency automatic search function can quickly scan and lock the frequency with the least worry in the working environment.

3. Receiver and transmitter use IR infrared frequency matching technology to synchronize codes with one click.

4. Professional performance-level phase lock circuit, combined with noise lock squelch control and digital pilot technology, when the transmitter is turned off, the pilot control mutes the AF signal to suppress noise, and at the same time mutes the corresponding receiver. It guarantees the effective blocking of the worry signal.

5. Backlit LED display indicates the working status of RF and AF signal strength, battery status, diversity channel indication (A/B), frequency, frequency group/channel, etc.

6.Accurate electronic volume control technology, the receiving distance is adjustable in three gears, and has an operation key lock function to prevent misuse.

7. TRD.3 true diversity wireless system is specially designed for touring and fixed installation purposes, and provides a variety of sound heads with different sound properties for replacement. It has the highest reliability, sound quality and transmission stability.

System indicators:

RF range: 615-675MHz

Available bandwidth: 60MHz per channel

Modulation method: FM frequency modulationNumber of channels: 300 channels of infrared automatic frequency matching

Operating temperature: minus 18 degrees Celsius to 50 degrees Celsius

Squelch mode: automatic noise detection and digital ID code squelch

Offset: 45KHz

Dynamic range: >110dB

Audio response: 60Hz-18KHz

Comprehensive signal-to-noise ratio: >105dB

Comprehensive distortion: <0.5%

Host Receiver specifications:

Receiving method: double-conversion superheterodyne, double-tuned true diversity reception

Oscillation mode: PLL phase locked loop

IF frequency: first IF: 110MHz, second IF: 10.7MHz

Antenna interface: TNC

Display mode: LCD

Sensitivity: -100dBm (40dB S/N)

Spurious suppression: >80dB

Audio output: unbalanced: +4dB (1.25V)/5KΩ

Balance: +10dB(1.5V)/600Ω

Supply voltage: DC12V Supply current: 450mA

UR4D Transmitter index:

Optional dynamic microphone handheld, capacitive microphone handheld, lavalier, head-mounted

Oscillation mode: PLL phase locked loop

Output power: 3dBm-10dBm (LO/HI conversion)

Battery: 2 "1.5V5" batteries Current: <100mA(HF), <80mA(LF)

Use time (alkaline battery): about 8 hours at high power.

Zinc aluminum alloy structure (OK-2H/3H)

All aluminum alloy structure (OK-5H/66H)
